How to calculate the effective length of a steel column?

Calculating the effective length of a steel column is a crucial aspect in structural engineering, especially when ensuring the safety and stability of a building or structure. As a reliable steel column supplier, we understand the significance of this process and are here to provide in - depth insights into how to accurately calculate the effective length of a steel column.

Understanding the Concept of Effective Length

Before delving into the calculations, it's essential to understand what effective length means. The effective length of a steel column, denoted as (L_{e}), is the length of an equivalent pin - ended column that would have the same critical buckling load as the actual column under consideration. In real - world structures, columns are rarely pinned at both ends. They can have various end conditions such as fixed, pinned, or a combination of these, which affects their buckling behavior.

Factors Influencing the Effective Length

Several factors influence the effective length of a steel column. These include the end conditions of the column, the stiffness of the connected members, and the overall structural configuration.

• End Conditions: The end conditions of a column greatly affect its effective length. For example, a column with both ends fixed (i.e., restricted from rotation and translation) has a lower effective length factor ((K)) compared to a column with both ends pinned (free to rotate). The most common end - condition combinations and their corresponding effective length factors ((K)) are as follows:
  • Both ends pinned: (K = 1.0). In this case, the effective length (L_{e}=KL = 1\times L), where (L) is the actual length of the column.
  • One end fixed, one end pinned: (K = 0.7). So, (L_{e}=0.7L).
  • Both ends fixed: (K = 0.5). Then, (L_{e}=0.5L).
  • One end fixed, one end free: (K = 2.0). And (L_{e}=2L).
• Stiffness of Connected Members: The stiffness of the beams and other members connected to the column also plays a role. If the connected members are very rigid, they can provide more restraint to the column, reducing its effective length. Conversely, if the connected members are flexible, they offer less restraint, increasing the effective length.
• Overall Structural Configuration: In a multi - story building, the interaction between columns and other structural elements in the overall frame affects the effective length. For instance, in a braced frame, the columns are often more stable, and their effective lengths are generally lower compared to columns in an unbraced frame.

Calculation Methods

There are two primary methods for calculating the effective length of a steel column: the alignment chart method and the direct analysis method.

Alignment Chart Method

The alignment chart method is a graphical approach based on the relative stiffness of the columns and the beams at the joints. Here are the steps to use this method:

1. Determine the Relative Stiffness: Calculate the relative stiffness of the columns and beams at each joint. The relative stiffness of a member is defined as (I/L), where (I) is the moment of inertia of the member and (L) is its length.
   • For columns, calculate the relative stiffness (G_{c}=\frac{\sum (I_{c}/L_{c}){col}}{\sum (I{b}/L_{b}){beam}}) at each joint, where (I{c}) and (L_{c}) are the moment of inertia and length of the columns, respectively, and (I_{b}) and (L_{b}) are those of the beams.
2. Use the Alignment Chart: Once the (G) values are calculated for the top and bottom joints of the column, enter the alignment chart. The alignment chart is a graphical representation that relates the (G) values of the top and bottom joints to the effective length factor (K).
3. Calculate the Effective Length: Multiply the actual length of the column (L) by the effective length factor (K) obtained from the alignment chart ((L_{e}=KL)).

Direct Analysis Method

The direct analysis method is a more accurate but often more complex approach. It involves using structural analysis software to model the entire structure, considering the effects of geometric nonlinearity, material nonlinearity, and member - to - member interaction.

1. Model the Structure: Create a detailed finite element model of the structure, including all columns, beams, and connections.
2. Apply Loads and Boundary Conditions: Apply the design loads and appropriate boundary conditions to the model.
3. Perform the Analysis: Conduct a nonlinear structural analysis to determine the buckling behavior of the columns. The software can directly calculate the effective length of each column based on the analysis results.

Practical Considerations

When calculating the effective length of a steel column, it's important to consider the following practical aspects:

• Material Properties: The properties of the steel, such as its modulus of elasticity ((E)) and yield strength ((F_{y})), can affect the column's behavior. These values should be accurately determined based on the specific steel grade used.
• Load Combinations: Different load combinations, such as dead loads, live loads, wind loads, and seismic loads, need to be considered. The effective length calculation should account for the worst - case load scenario.
• Construction Tolerances: In real - world construction, there are always some tolerances in the fabrication and erection of steel columns. These tolerances can slightly affect the end conditions and the overall behavior of the column, and should be factored into the design.

Our Role as a Steel Column Supplier

As a leading steel column supplier, we not only offer high - quality steel columns but also support our customers in the design and engineering process. We can provide detailed information about the steel grades we offer, including their material properties, which are essential for accurate effective length calculations. Our team of experts can also assist in understanding the end - condition requirements and how to select the appropriate columns for different structural configurations.

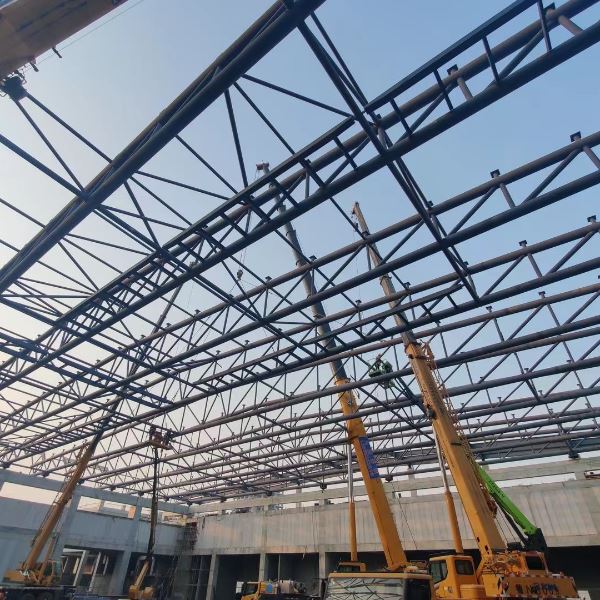

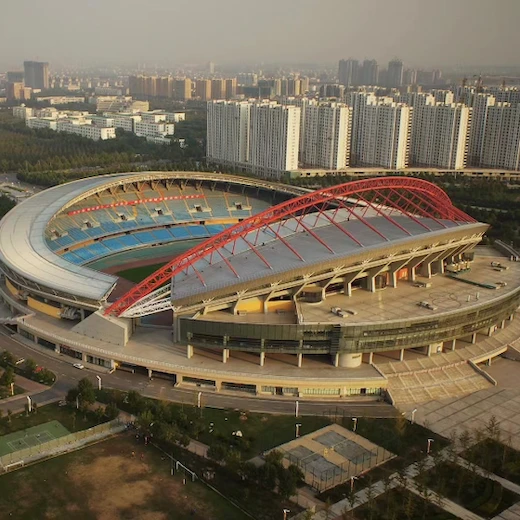

If you are involved in projects such as Welding Services, Steel structure for stadium building, or Prefabricated Metal Steel Structure Prefab School Buildings Steel Construction Work, our steel columns can be the ideal choice. We ensure that our products meet the highest industry standards and are suitable for the most demanding applications.

Conclusion

Accurately calculating the effective length of a steel column is a fundamental step in structural design. By understanding the concept of effective length, the factors that influence it, and the calculation methods, engineers can ensure the safety and stability of their structures. As your trusted steel column supplier, we are committed to providing the best products and support to help you achieve your project goals. If you are interested in purchasing high - quality steel columns or need more information on effective length calculations, please feel free to reach out to us for procurement and further discussion.

References

• "Steel Construction Manual", American Institute of Steel Construction (AISC).
• "Structural Engineering Handbook", edited by Dat D. Bui.
